Combi Model

Wrap-around in high tray and tray + film

combi wrap-around model in high tray and tray + film

Details

The Combi model consists of the combination of several types of packaging.

 Specifically, it is able to pack in wrap-around, with high tray and with tray + film

With this machine, it is possible to package almost all types of products, as it covers a wide range of packaging options. It is a particularly useful machine for producers that cover more than one production line, with different needs for each type of product that requires packaging.

Energy saving tunnel

The shrink tunnel present in all Zambelli Shrink wrap machines has 7 fundamental characteristics:

  1. Tunnel flow setting through adjustable holes
  2. Extra resistors already installed (zero downtime replacement)
  3. Minimum energy consumption
  4. Three possible configurations on the same tunnel (1, 2 or 3 lanes)
  5. Separate cooling section at the exit for best shrink
  6. Tunnel adjustment according to the film characteristics
  7. Possibility of working with different types of films by adjusting the air flows and temperature

Machine Details

Special groups

90° continuous translator for multi-flavor cans
Multi-flavor power supply Special feeds for channeling several rows of product with different flavors, to then be conveyed into a single feed and forming a single bundle.
It can be built in line or with rotary tables.
Single and double pre-retraction handle

The pre-retraction handle applicator, available in single and double, includes:

  • double scotch reel holder (1,500 m) with automatic change or single reel holder (5000 m) paper reel holder (1,500 m)
  • paper-scotch coupling and handle cut
  • paper length adjustment
  • automation and control
  • light indicator
Continuous stacker for stackable cans

Can stacking system consisting of infeed belts complete with overlapping unit with stars.

The cans transported to the entrance of the machine are then packaged in tray + film or wrap-around.

Accessories

On the Zambelli shrink wrappers it is possible to take advantage of an automatic motorized adjustment of the product guides in the areas normally adjustable by means of a handwheel for format change.
All the moving parts of the machine that are subject to format change can be equipped with brushless motors for quick format change.

Thanks to the automatic welder, in case of use of printed film, a photocell stops the unwinding near the reference notch engraved in step in the film, in order to proceed with the welding between the exhausted reel and the new one. This system guarantees the perfect position of the printed film without film waste or bundles when restarting after the reel change.

In the combi model shrink wrappers it is possible to process products in film only, high / low tray + film thanks to the presence of the bypass belt, a device that can be easily lifted using suitable supports when not in use.

The energy saving bulkheads are present at the entrance and exit of the heat tunnel, designed to lower automatically to reduce energy consumption and to quickly reach the temperature "set point" when the machine is started.

In combination with this, through the PLC it is possible to manage the resistances that turn on and off according to the temperature detected inside the shrink chamber.

Also through the PLC, it is possible to automatically activate the lubrication pump for a time that can be set according to the hours of operation of the machine.

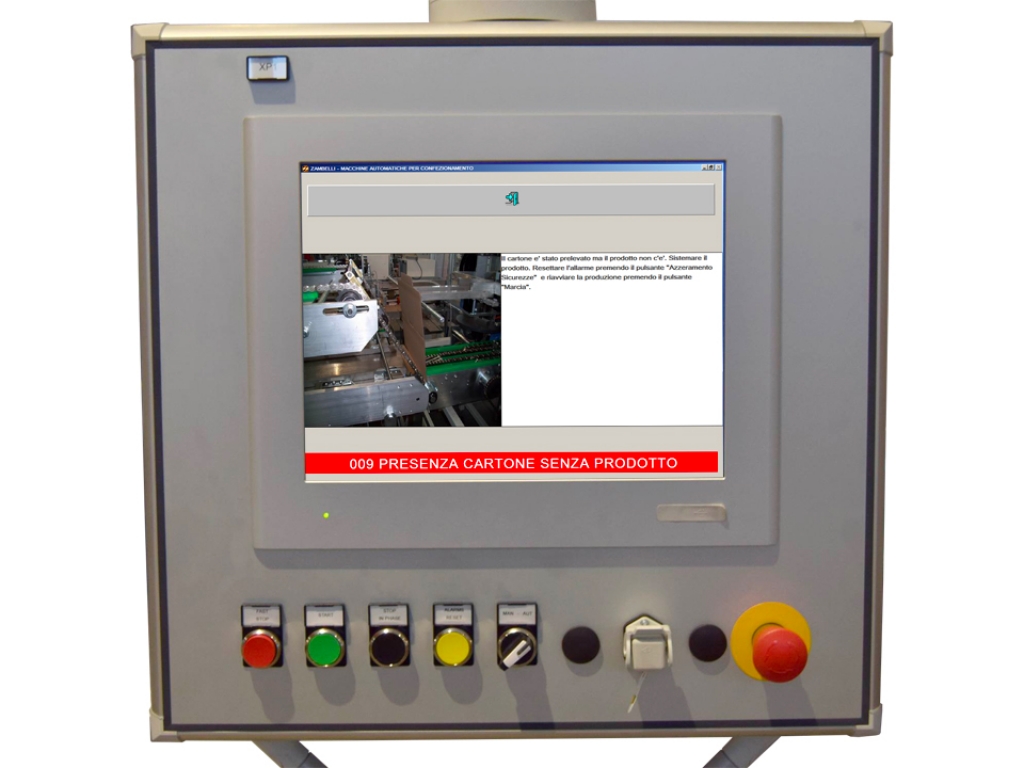

The touch screen PC includes, in addition to what is described, also: the alarm signaling complete with photos and explanation for the relative reset, the video instructions for the format change, the list of recommended spare parts, the wiring diagram, the user manual and maintenance of the machine and, finally, the performance statistics of the machine.

Tips

Did you know that each machine is available in multiple versions?

We have created intelligent, modular and tailored packaging solutions
to meet every production requirement..
